Backed with the years of expertise and innovative techniques, Vijay Expeller Industries, manufacture, export & supply cost-effective Oil Expellers, Copra Cutter, Filter Press, Neutralizer, Worm Gears for Oil Expellers, etc.

Vijay Expeller Industries Vijay Expeller Industries
Send Query
Our Forte: Hassle-free Performance of Our Machines.

Our continuous endeavors are focused towards complete satisfaction of our clients. We have centered on all our energies and expertise in developing high performance machines. Considering the fact that these machines are required to be operated continually, we ascertain to device them from perdurable M.S plate steel. The sturdy structural design, ease in operation are some of the attributes that makes our machines distinct.

About Us

Established with the profound understanding of the oil expelling industry, we-Vijay Expeller Industries, are engaged in manufacture & export business of Oil Expellers, Copra Cutter, Filter Press, Neutralizer, Worms & Gears for Oil Expellers, etc. Over the years, we have attained expertise and sufficient cognition in our field of operation.

We have maintained our industrial repute by implementing our expertise and experience in devising high performance and hassle free machines. The sturdy construction design and their efficiency to economize energy and other resources make our machines most coveted option available in market. The compact structural design is specially engineered so that they occupy minimum operational space.

We are perpetually growing in this sector with the continued support of our experts and technical personnel. Their perseverance is evident in their efficiency to develop standard and custom designed machines while adhering to timely schedules.


We Offer

We continually incorporate advanced and avant garde techniques in engineering precision and best quality machines. These are designed in standard and custom configuration keeping in mind the ever discerning demands of the clients.

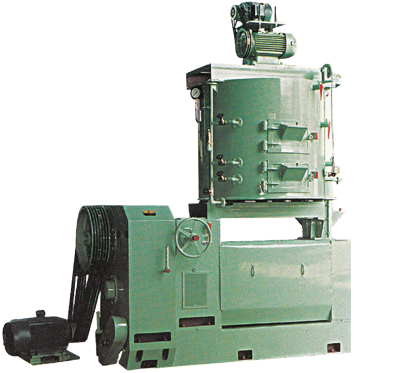

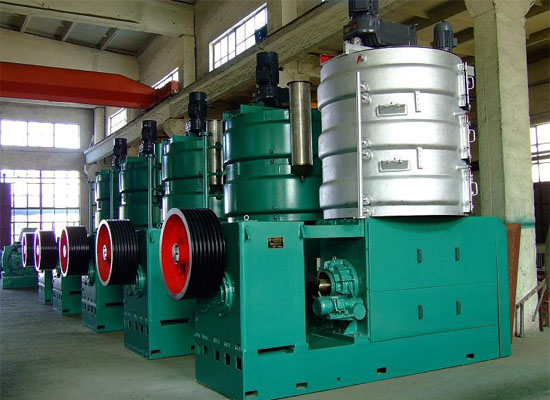

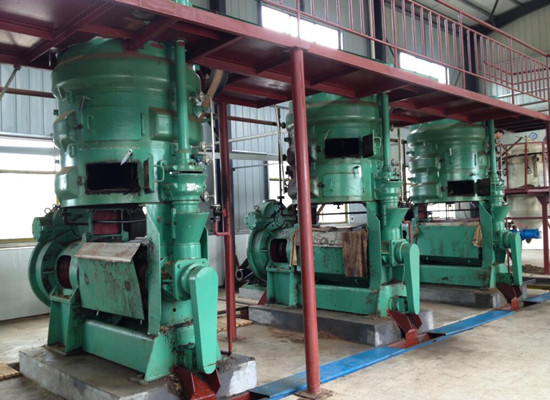

Oil Expellers
Click here to Zoom
Oil Expellers

Features:
  • Body:The body, made of heavy duty closed-grained and seasoned casting to ensure vibration free operations.
  • Gear Box: Made from Graded Cast Iron to ensure smooth and safe operations. The steel milling cut gears and additional reduction helical gear set are fitted.

Type of Ecpeller H.P. Require Ground Nuts Tons Cotton Seeds Tons Castor Seeds Tons Copra & Mustard Tons Lmseeds Tons Mahuwa Tons Sunflower Tons Percentage of oil Residue in cake
Super 'A' 55'' Tapper Chamber 75 25 to 30 -- 25 to 30 25 25 to 30 25 to 30 25 to 30 10% to 16% in single crushing $ 7% to 8% in final crushing
'A' Type 44'' Tapper Chamber 40 to 50 15 12 18 16 16 15 15 7% to 8% in final crushing
'B' Type 33" x 7" Chamber 35 to 40 12 10 14 14 15 14 14 7% to 8% in final crushing
'B' Type 36” x 6½” 35 to 40 12 10 - 11 10 - 11 12 11 11 - 13 11 - 13 7% to 8% in final crushing
'B' Type 33" x 6" Chamber 30 to 35 10 8 12 10 10 12 12 7% to 8% in final crushing
'C' Type 30" x 5 ½ Chamber 20 to 25 4 4 5 5 5 5 5 7% to 8% in final crushing
'C' Type 27" x 5" Chamber 20 BHP 3 3 4 4 4 4 4 7% to 8% in final crushing



Plate Type Filter Press

Ideal for sheet filter for coarse, polishing & sterilizing filter duties, we offer complete range of Plate Type Filter Press with centre hole that are easy to handle & functional to operate. Available in different sizes, these filter press are provided with various operational devices / accessories like pressure gauze, air vent valve,drain valve, drip collection tray, etc. These plate type filter press are widely used for Double Filtration, Retention of Solids, Filtration of still & carbonated liquids & so on.

Specifications:

Size Weight in KGS Area in Sq Mts Capacity in litres/Day H.P. Required RPM of Pump Size Of Plunger Pump
30"X30"X30 Plates Center Hole 4800 35 24000 3 55-60 80mm
24"X24"X24 Plates Center Hole 2300 16 10000 3 50-55 60mm
24"X24"X30 Plates Center Hole 2700 20 12500 3 50-55 60mm
18"X18"X18 Plates Center Hole 1000 7 6000 1 40-45 50mm
14"X14"X14 Plates Center Hole 500 3 2500 1 40-45 50mm
12"X12"X12 Plates Center Hole 380 2 1500 1 40-45 40mm

Plate Type Filter Press
Click here to Zoom

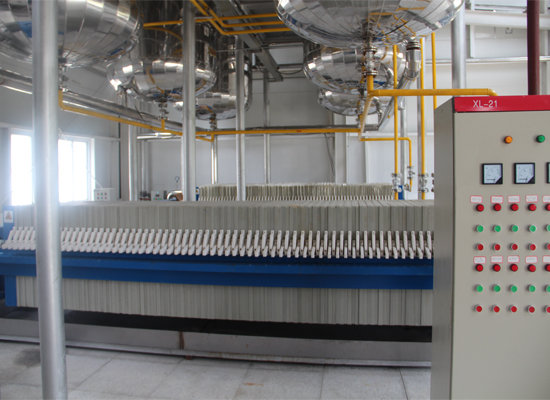

Plate & Frame Filter Press
Click here to Zoom
Plate & Frame Filter Press

We manufacture an exclusive range of Plate & Frame Filter Press with side holes that feature durability, reliability, performance & high tolerance. Processed using some of the latest machines & skilled manpower, we offer our clients machines as per their requirements & specifications & deliver premium quality products within the stated time framework.

Specifications:

Size Weight in KGS Area in Sq Mts Capacity in ltr/Day H.P. Required R.P.M of Pump Size Of Plunger Pump
36"X36"X36 Plates & 35 frames 9500 55 50000 10 2900 Centrifugal
30"X30"X30 Plates & 29 Frames 5500 35 30000 5 55-65 80 mm
24"X24"X24 Plates & 23 Frames 3000 16 12500 3 55-55 60mm



Copra Cutter

These are specially designed from best quality M.S. Steel that provides a robust construction design. The ease in operation and simplicity in handling these machines make them suitable for large number of operations.

Features of our Copra Cutters are listed below:

  • These are constructed from best quality M.S. Plate steel which makes them sturdy and perdurable.
  • Being configured with heavy duty double roller imported bearings, these machines ensure smooth performance and offers maximum out-put.
  • These machine are fitted with 8 Nos. Beaters specially designed with hardened heads to break the copra into small pieces before feeding.
  • Specially designed 'Caves' are built in the machine to ensure that copra does not slip a slide and constantly remains within the striking range of the beaters.
  • The sharp-edged knives of the screen is designed with precision in order to cut the 'Copra' very easily into finest pieces, shapes and sizes.
  • The fitting method of the screen is simple and they can be easily replaced when required in case of abrasions.
  • The Copra Cutter is fitted with V-Belt pulley so that the electric motor can be directly fitted opposite the machine to required R.P.M.

Technical Specifications of our Copra Cutters are listed below:

  • Capacity : 2500 Kgs. of Copra can be cut per hour at 300-400 R.P.M.
  • Power Required : 10 B.H.P.

Copra Cutter
Click here to Zoom

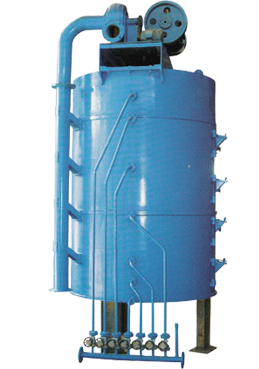

Neutralizer
Click here to Zoom
Neutralizer

Neutralizer removes free fatty acids from cottonseed oil by adding caustic soda. It is driven by 1 H.P. Motor. Castor oil also can be heated into neutralizer by steam coils inside the neutralizer. Neutralizer is extensively used for the control of more intense odors associated with sewage, large buildings or large volume of garbage dispensed by mega fog, flexi fog or mini vaporizer systems at both commercial, industrial & domestic areas.


Worms Gears for Oil Expellers

We are a leading Expeller Spares Manufacturer. Our products have made inroads to international market and have found a foot holds even there. We offer our client complete support for installing the machines and plants and train the workforce of companies.

Understanding individual clients' requirements form all parameters and accordingly serving them. Procurement of the products from the best available resources (options) at competitive prices and terms relative to the market trends at the time of business. Ensuring quality check before dispatching along with safety measures for maintaining quality during transit. Prompt feedback and market reports to our customers.
Worms Gears for Oil Expellers
Click here to Zoom



Why Us?

  • Quality has played a vital role in achieving an esteemed repute in the industry. High standards of quality is maintained in all our machines right from sourcing the best quality M.S steel and the final production and fabrication.

  • The flexible and customer oriented approach adopted in our unit ascertains our personnel to develop standard and custom configured machines.
  • With the years of expertise and incisiveness in this field, we understand the discerning requirement of our clients and are efficient to undertake huge production volumes in our unit.
  • Our adept personnel and technical engineers focus all their attention and expertise towards devising high performance and hassle free machines.
  • Apart from our vast gamut of machines, we also offer efficient after sales services and installation support to our valued clients.


Clients

We have garnered some of the esteemed clients in the industry due to our efficient efforts to develop cost effective and high quality machines. We offer customized and standard designed equipment in order to comply with the client's specifications.
